Properties

SMTPL engineers coatings to meet the specific needs for its industrial customers. The tabulation provides information on key coating properties and recommendation or use.

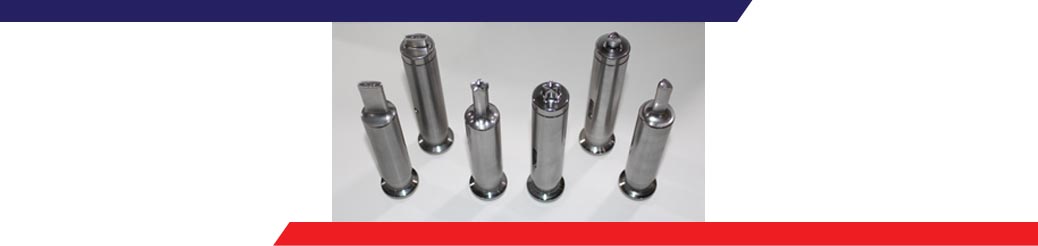

SMTPL’s Pharma-Grade coatings are a family of monolayer, multilayer, nano-layered chromium nitride, chromium and nickel alloy coatings designed to optimize for the Tablet tooling application.

SMTPL’s Pharma-Grade coatings offer good wear resistance, low coefficient of friction, chemical inertness, high oxidation thresholds as well as corrosion resistance.



SMTPL Pharma-Grade coatings properties

Coating name

CROMA-n

CROMA-n PLUS

MCROMA-n

Supernano-22

Super CROMA

PVDN

Coating type

Monolayer
CrN

Multi-layer
CrN/Cr

Multi-layer
CrN/Cr

Nano-layer
CrN/Cr

Monolayer
Cr

Multi-layer Nickel

Hardness
(HV)

2000 ± 400

2000 ± 400

2200 ± 300

2500 ± 300

1000±100

900±100

Thickness
(µm)

2.0 ± 0.1

2.0 ± 0.1

2.5 ± 0.2

3.0 ± 0.2

2.0 ± 0.1

2.0 ± 0.1

Wear coefficient
(m2/N)

6.0 x 10-14

6.0 x 10-14

5.0 x 10-14

4.5 x 10-14

1.0 x 10-13

2.5 x 10-13

Roughness
(Ra) (µm)

0.1

0.1

0.12

0.07

0.12

0.12

Oxidation Temp(0C)

7000C

7000C

7000C

7000C

4500C

4000C

Friction coefficient

0.55

0.55

0.50

0.45

0.65

0.65

Deposition temperature(0C)

1500C

1500C

1500C

1500C

1500C

1500C

Colour

Silver-Grey

Silver-Grey

Silver-Grey

Silver-Grey

Bluish Silver

 Yellowish Silver
